CNC Programming Examples - Peck Milling

  Thanh A Tran       Thursday, October 11, 2018

CNC Milling Machine Programming Example for Beginners

CNC Mill Program Example

A very simple cnc milling machine programming tutorial for beginner level cnc machinists.
An easy to understand cnc mill programming code. This is a cnc g code example without the use of any cnc canned cycle.
Related cnc mill program examples
  • CNC G02 Circular Interpolation Clockwise CNC Milling Sample Program
  • CNC Milling Circular Interpolation G02 G03 G-Code Program Example
Beginner level cnc program examples for CNC Lathe
  • Fanuc CNC Program Example
  • CNC Programming for Beginners a Simple CNC Programming Example
  • CNC Programming for Beginners a CNC Programming Example
N05 G0 G90 X40 Y48 Z2 S500 M3
        N10 G1 Z-12 F100
        N15 X20 Y18 Z-10
        N20 G0 Z100
        N25 X-20 Y80
        N30 M2

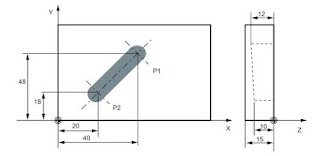

N05 The tool traverses in rapid traverse on P1, three axes concurrently, spindle speed = 500 rpm, clockwise
N10 Infeed on Z-12, feed 100 mm/min
N15 Tool travels on a straight line in space on P2
N20 Retraction in rapid traverse
N30 End of program
