CNC milling program to describe how two or more radii can be joint together in a cnc mill program.
------------
Slot Milling a Sample CNC Program
Contents
CNC Mill Subprogram Example

CNC Part Program
N10 T1 H1 M6 G43 M3 N20 F150 S250 N30 G0 X-21 Y50 Z0.5 N40 G0 Z0 N50 M98 P040050 N60 G49 N70 G0 Z50 N80 M30
Subprogram
O0050 N10 F160 S400 N20 G0 Z-2.5 G91 N30 G1 G90 X5 Y50 G41 (P1) N40 G2 X22 Y85.23 I45 J0 (P2) N50 G3 X78 Y85.23 R45 (P3) N60 G2 X78 Y14.77 R45 (P4) N70 G3 X22 Y14.77 R45 (P5) N80 G2 X5 Y50 R45 (P1) N90 G0 G40 X-21 N100 M99
G M S T Codes Explanation
Code | Description |
---|---|
G00 | Rapid traverse |
G01 | Linear interpolation |
G02 | Circular interpolation CW |
G03 | Circular interpolation CCW |
G40 | Cutter compensation cancel |
G41 | Tool nose radius compensation left |
G43 | Tool length compensation + direction |
G49 | Tool length compensation cancel |
G90 | Absolute command |
G91 | Increment command |
M03 | Spindle start forward CW |
M06 | Tool change |
M30 | End of program (Reset) |
M98 | Subprogram call |
M99 | End of subprogram |
T | Tool |
S | Speed |
F | Feed |
------------
Slot Milling a Sample CNC Program
Example
A very simple cnc milling program example which shows how a simple slot can be machined.
Another such program example which mills a pocket the same way but in a taper is here CNC Milling Machine Programming Example for Beginners.

N20 Infeed in Z.
N30 Tool traverse P01 to P02, feedrate 150 mm/min.
N40/N50 Rapid traverse retraction.
N60 End of program.
CNC Mill
A very simple cnc milling
machine programming tutorial for beginner level cnc machinists.
An easy to understand cnc mill programming code. This is a cnc g code example without the use of any cnc canned cycle.
Related cnc mill program examples
N10 Infeed on Z-12, feed 100 mm/min
N15 Tool travels on a straight line in space on P2
N20 Retraction in rapid traverse
N30 End of program
Another such program example which mills a pocket the same way but in a taper is here CNC Milling Machine Programming Example for Beginners.
Slot Milling Program Example

Slot Milling Sample CNC Program
N10 G00 G90 X70 Y25 Z1 S800 M3 N20 Z-5 N30 G01 X20 F150 N40 G00 Z100 N50 X-25 Y50 N60 M30N10 Spindle on clockwise rotation at 800 rev/min, tool rapid traverse to P01.
N20 Infeed in Z.
N30 Tool traverse P01 to P02, feedrate 150 mm/min.
N40/N50 Rapid traverse retraction.
N60 End of program.
CNC Milling Machine Programming Example for Beginners
CNC Mill
Program Example
A very simple cnc millingAn easy to understand cnc mill programming code. This is a cnc g code example without the use of any cnc canned cycle.
Related cnc mill program examples
- CNC G02 Circular Interpolation Clockwise CNC Milling
Sample Program
- CNC Milling Circular Interpolation G02 G03 G-Code Program Example
- Fanuc CNC Program Example
- CNC Programming for Beginners a Simple CNC Programming Example
- CNC Programming for Beginners a CNC Programming Example

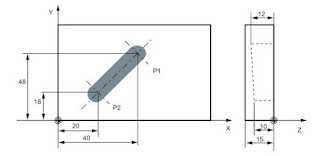

CNC Milling Machine Programming
Example for Beginners
N05 G0 G90 X40 Y48 Z2 S500 M3 N10 G1 Z-12 F100 N15 X20 Y18 Z-10 N20 G0 Z100 N25 X-20 Y80 N30 M2N05 The tool traverses in rapid traverse on P1, three axes concurrently, spindle speed = 500 rpm, clockwise
N10 Infeed on Z-12, feed 100 mm/min
N15 Tool travels on a straight line in space on P2
N20 Retraction in rapid traverse
N30 End of program
